Diode Laser Brass Welding, Brazing, Wire Feed Braze Welding



Brazing Is A Joining Process


Brazing is a joining process whereby a non-ferrous filler metal or alloy is heated to melting temperature above 800 °F (425 °C ) and distributed between two or more close-fitting parts by capillary action. At its liquid temperature, the molten filler metal and flux interacts with a thin layer of the base metal, cooling to form an exceptionally strong, sealed joint due to grain structure interaction. Certain metals, such as CuAg (Copper-Silver alloy), have a low temperature eutectic. This leads to the bonding of the two metals at a point that can be substantially lower than their respective melting temperatures. The brazed joint becomes a sandwich of different layers, each metallurgically linked to the adjacent layers.

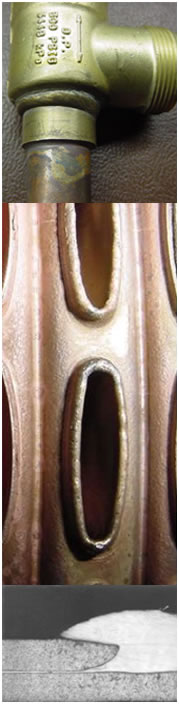

Brazing

Brazing Process








Titanova, Inc. Offers Unique Services

Laser brazing is a process in which the heat source is replaced by a laser, allowing for a localized heat application and further reducing energy costs and part distortion. Titanova, Inc. offers unique services of brass welding, laser brazing and laser soldering. The diode laser has a unique wavelength and beam shape that enables welding of brass, brazing of silver or copper based brazing alloys. This wavelength and a line shaped beam enables wire feeding of silicon bronze [CuSi] wire. The long beam which can only produce conduction mode weld “wets out” the weld. This produces excellent braze bead profiles. The largest obstacle for electric arc welding brass and CuSi bronze wire feed braze welding of zinc coated steels is the zinc fuming and fouling of electrode. Titanova, Inc. unique laser and welding cell design eliminates this concern, thus allowing a robust and repeatable process.




Melting Point [°C/°F]

Boiling Point [°C/°F]

Zn [ZINC]

419 / 786

907 / 1664

FE [IRON]

1535 / 2795

2750 / 4982





Benefits Of Laser Brazing


  • Non plasma process
    [enables in situ quality monitoring]
  • Can weld brass and zinc coated steels
  • Splatter significantly reduces
  • Zinc fuming and sooting reduced
  • Fouling of MIG/TIG not an issue,
    therefore production robust
  • Lower heat input
  • Faster brazing process




Give Titanova, Inc. a call so we may discuss your brazing or soldering needs.



Phone: 636-487-0070

Fax: 636-487-0067

Titanova Contact
